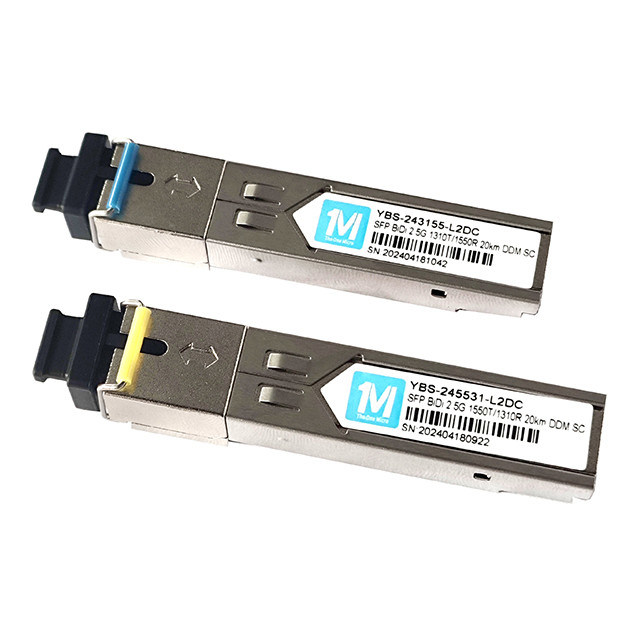

2.5G BIDI 20km 1310nm/1550nm SC Connector DDM WDM Simplex Optical Module Transceiver SFP Module for Speed Data Transfer
Product Details:
| Place of Origin: | Hubei, China |
| Brand Name: | The One Micor |
| Certification: | CE RoHS FCC UKCA |
| Model Number: | YBS-243155-L2DC/YBS-245531-L2DC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $9.00/pairs 1-99 pairs |
| Delivery Time: | Sample Order: 1-3 days after receipt of the full payment Stock Order: 3-7days after receipt of the full payment OEM Order: 12-20days after receipt of the deposit. |
| Payment Terms: | T/T, Western Union, Moneygram ,Escrow |
|
Detail Information |
|||
| Type: | Fiber Optic Transceivers | Use: | FTTX |
|---|---|---|---|
| Warranty Time: | 3 Years | Network: | Wireless Lan, Bluetooth, Wired LAN, ONVIF, None, None, SDK, TCP, Ip, POE, GPRS, Wifi, 4g, GSM, 3G, Wiegand |
| Product Name: | Fiber Optic Transceiver Module | Data Rate: | 2.5G |
| Wavelength: | 1310nm/1550nm | Distance: | 20km |
| Interface: | BIDI SC | Fiber Type: | SMF |
| DDMI: | Yes | Warranty: | 3 Yeas |
| Package: | 10PCS/box | ||
Product Description
Products Description
Details Images
Model Number | YBS-243155-L2DC/YBS-245531-L2DC |
Place of Origin | Wuhan, China |
Brand Name | The One Micor |
Data Rate | 2.5G |
Wavelength | 1310nm/1550nm |
Transmission distance | 20km |
Interface | BIDI SC |
Power | -5-0dBm |
Receiver Sensitivity | < -20dBm |
Fiber Type | SMF |
Supply Voltage | 3.3V |
DDMI | Yes |
Temp | 0~70℃ or -40~85℃ |
Certification | CE、ROHS、FCC、UKCA |
Product packaging
Certifications
Exhibition
Company Profile
The One Micro Technology Co., Ltd.
The One Micro Technology Co., Ltd. is located in Wuhan`China Optics Valley. It is a high-tech enterprise specializing in the production, development and sales of optical transceiver modules and optoelectronic devices. The company's optical module products cover the full rate of 155M-100G, and are packaged in SFP, SFP+, SFP28, QSFP, QSFP28, etc. In addition to the standard optical module product series, we can also provide customers with customized solutions based on customer's specific requirements.
FAQ
How To Order ?
Step 1, please tell us what model and quantity you need, Step 2, then we will make a Pl for you to confirm the order details, Step 3, when we confirmed everything, can arrange the payment, Step 4, finally we deliver the goods within the stipulated time.
Delivery Time?
Sample Order: 1-3 days after receipt of the full payment Stock Order: 3-7days after receipt of the full payment OEM Order: 12-20days after receipt of the deposit.
After-sales Service
1 year warranty for all kinds of products. If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
Payment
T/T, Western Union, Moneygram ,Escrow
