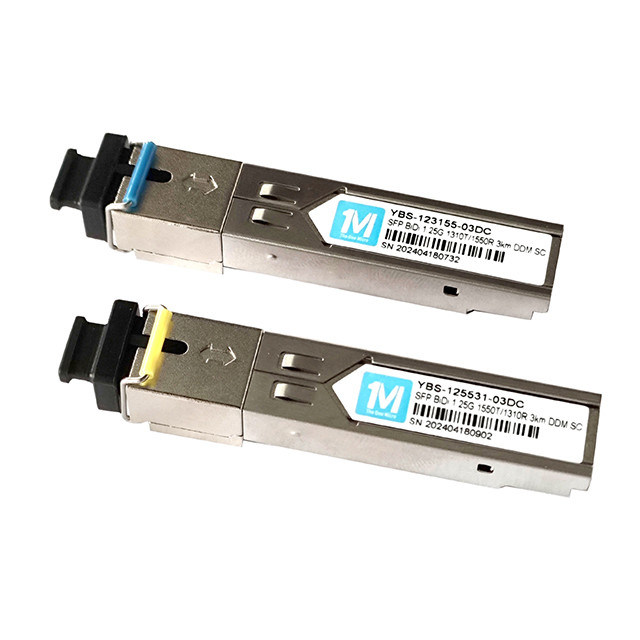

3 DDMI Yes 1.25G BIDI 3km 1310nm/1550nm SC Connector WDM Simplex Optical Module SFP Transceiver for Network Connections
Product Details:
| Place of Origin: | Hubei, China |
| Brand Name: | The One Micor |
| Certification: | CE RoHS |
| Model Number: | YBS-123155-03DC/YBS-125531-03DC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $6.60/pairs 1-99 pairs |
| Delivery Time: | Sample Order: 1-3 days after receipt of the full payment Stock Order: 3-7days after receipt of the full payment OEM Order: 12-20days after receipt of the deposit. |
| Payment Terms: | T/T, Western Union, Moneygram ,Escrow |
|
Detail Information |
|||
| Type: | Fiber Optic Transceivers | Use: | FTTX |
|---|---|---|---|
| Warranty Time: | 3 Years | Network: | Wireless Lan, Bluetooth, Wired LAN, ONVIF, None, None, SDK, TCP, Ip, POE, GPRS, Wifi, 4g, GSM, 3G, Wiegand |
| Product Name: | Fiber Optic Transceiver Module | Data Rate: | 1.25G |
| Wavelength: | 1310/1550nm | Distance: | 3km |
| Interface: | BIDI SC | Fiber Type: | SMF |
| DDMI: | Yes | Warranty: | 3 Yeas |
| Package: | 10PCS/box | ||
Product Description
Products Description
Details Images
Model Number | YBS-123155-03DC/YBS-125531-03DC |
Place of Origin | Wuhan, China |
Brand Name | The One Micor |
Data Rate | 1.25G |
Wavelength | 1310/1550nm |
Transmission distance | 3km |
Interface | BIDI SC |
Power | -9~-3dBm |
Receiver Sensitivity | < -24dBm |
Fiber Type | SMF |
Supply Voltage | 3.3V |
DDMI | Yes |
Temp | 0~70℃ or -40~85℃ |
Certification | CE、ROHS、FCC、UKCA |
Product packaging
Certifications
Exhibition
Company Profile
The One Micro Technology Co., Ltd.
The One Micro Technology Co., Ltd. is located in Wuhan`China Optics Valley. It is a high-tech enterprise specializing in the production, development and sales of optical transceiver modules and optoelectronic devices. The company's optical module products cover the full rate of 155M-100G, and are packaged in SFP, SFP+, SFP28, QSFP, QSFP28, etc. In addition to the standard optical module product series, we can also provide customers with customized solutions based on customer's specific requirements.
